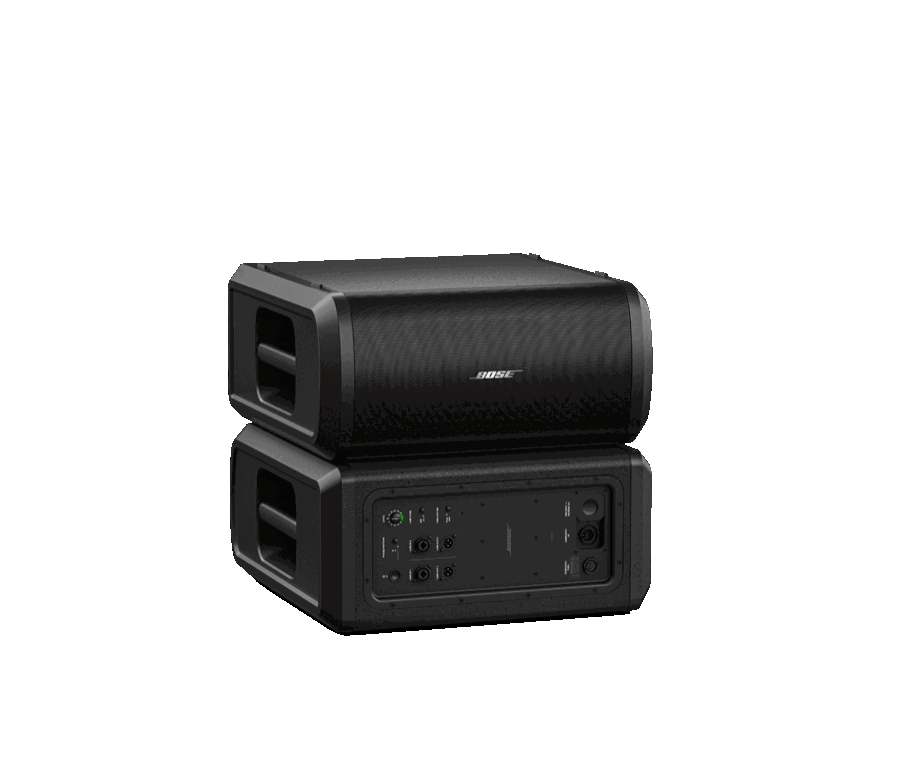

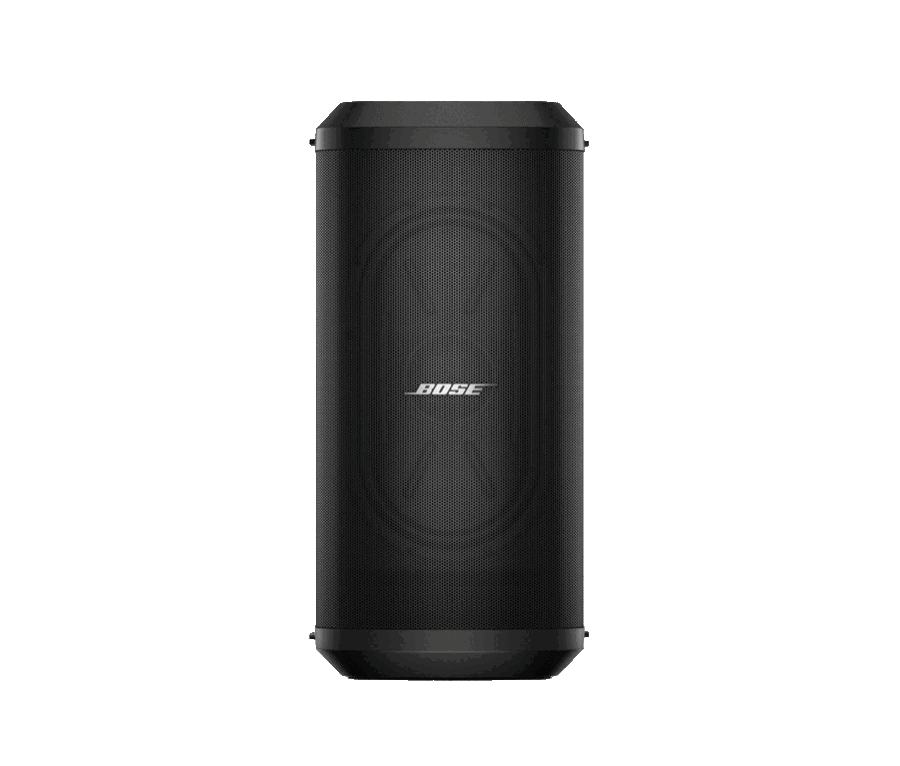

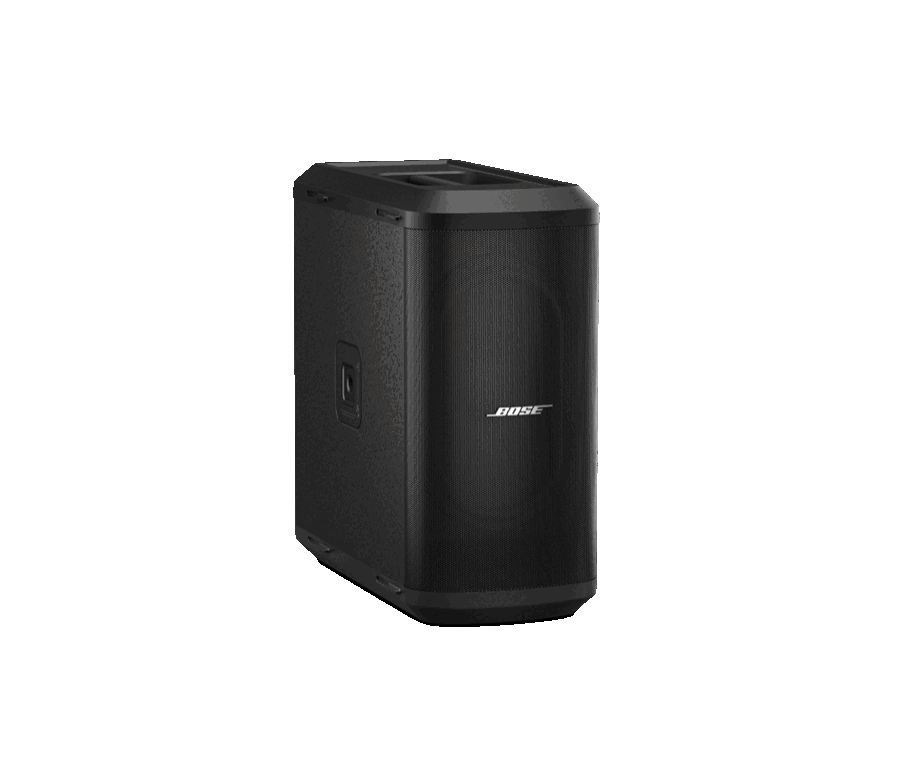

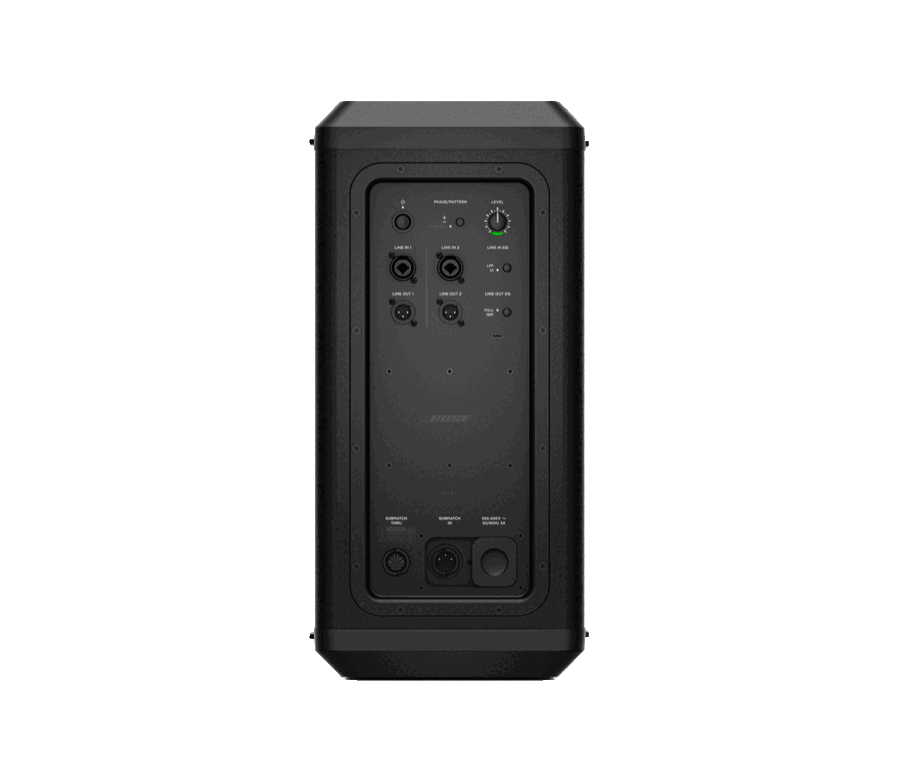

Bose Sub1 Powered Bass Module view 1Bose Sub1 Powered Bass Module view 2Bose Sub1 Powered Bass Module view 3Bose Sub1 Powered Bass Module view 4
Bose Sub1 Powered Bass Module view 1Bose Sub1 Powered Bass Module view 2Bose Sub1 Powered Bass Module view 3Bose Sub1 Powered Bass Module view 4
Bose Professional

Bose Sub1 Powered Bass Module

142274.00

Availability: Out Of Stock

  • 100% genuine, brand-warranted stock
  • Expert installation & room calibration
  • Free acoustic consultation before you buy
Description

The Bose Sub1 Powered Bass Module is a powered bass module from the Bose Professional portable range. AudioFusion Solutions is an authorised Bose Professional dealer: every unit is genuine, carries full manufacturer warranty, and can be delivered and installed anywhere in India.

Listed at ₹1,42,274 MRP (inclusive of taxes), per the Bose Professional portable price list effective 2026-05-01.

Full manufacturer specifications, a demonstration at our Gomti Nagar experience centre, or a system design around this product — talk to our team and we will put it together.

Technical specifications
Performance
Frequency range (-10 dB)
32 Hz – 250 Hz
Coverage, horizontal
0°
Coverage, vertical
Omnidirectional (−10 dB rear rejection in cardioid mode)
Calculated maximum SPL @ 1 m
124.6 dB
Power handling, peak
480 W
Transducers
Low-frequency
1 × RaceTrack 7 × 13 in (178 × 330 mm) driver
Crossover
200 Hz
Amplification
Number of channels
1
Power class
Class D
Audio inputs
Input channels
2
Connectors
(1) XLR-1/4-in TRS combo, (1) SubMatch (proprietary multi-pin)
Phantom power
No
Integrated DSP
DSP-enabled
Yes
Processing
Input EQ, output EQ, phase/pattern polarity inversion
Electrical
AC power input
100–240 VAC (±20%, 50/60 Hz)
AC power connector
IEC, SubMatch
Current draw, inrush
14.9 A at 120 VAC, 60 Hz / 29.3 A at 230 VAC, 50 Hz
Physical
Dimensions (H×W×D)
533 mm × 260 mm × 529 mm (21.0 in × 10.2 in × 20.8 in)
Net weight
15.5 kg (34.1 lb)
Enclosure
High-impact polypropylene, birch plywood
Grille
Perforated steel, powder-coated
Cooling
Convection
General
App
Bose Music (Android, iOS)
Computer interface
USB Type-C
Safety
UL/IEC/EN62368-1

Specifications published by Bose Professional for 840918-5130. E&OE. Ask us if you need a detail that is not listed.
